Crane End Beam/Double Beam Crane End Beam

Crane End Beam/Double Beam Crane End Beam
Crane End Beam/Double Beam Crane End Beam

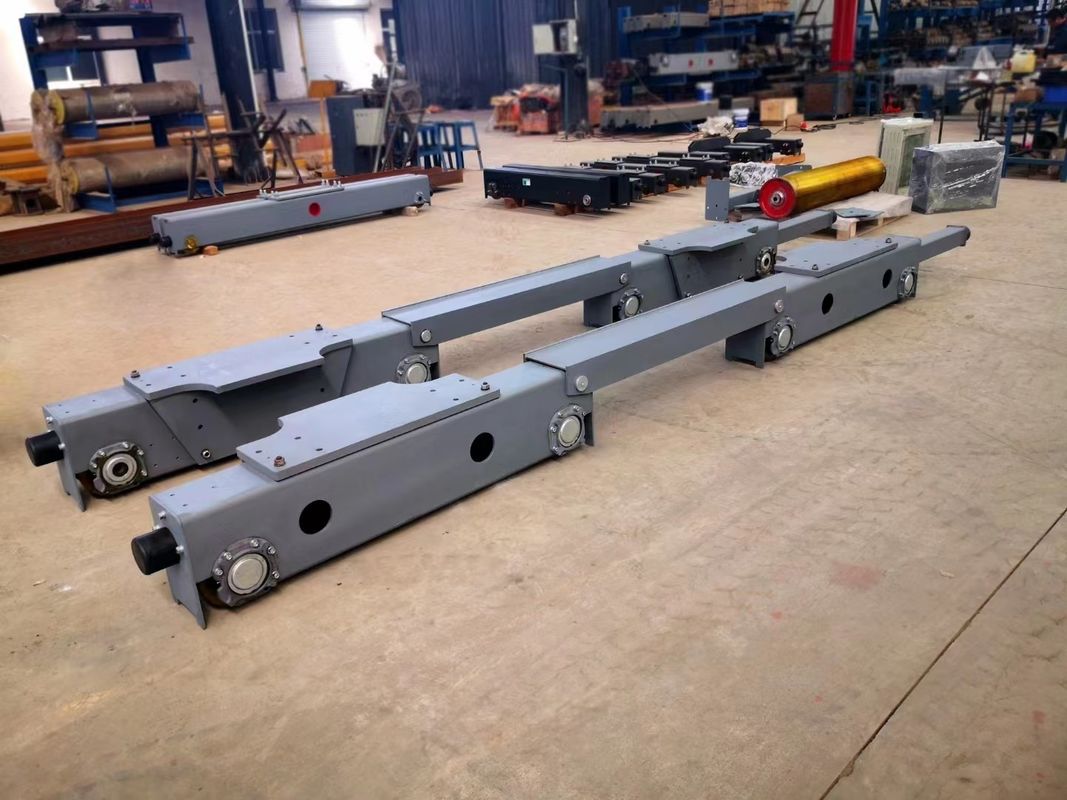

Großes Bild :  Crane End Beam/Double Beam Crane End Beam

Produktdetails:
Herkunftsort: CHINA
Markenname: catet
Zertifizierung: ISO/CE
Modellnummer: QDX
Zahlung und Versand AGB:
Min Bestellmenge: 1
Preis: USD+300-600+1set
Verpackung Informationen: Holzkistenverpackungen
Lieferzeit: 3 Arbeitstage
Zahlungsbedingungen: T/T
Versorgungsmaterial-Fähigkeit: 99

Crane End Beam/Double Beam Crane End Beam

Beschreibung

Product Introduction

CATET manufactures European standard overhead cranes, trolley cranes, electric end beams, European wire rope hoists, European trolleys, and various crane end beam motors.


Crane End Beam/Double Beam Crane End Beam 0

The end beam of CATET's double-beam bridge crane integrates advanced frequency conversion technology, enhancing product performance. The frequency conversion control applied to the crane's translation mechanism addresses common issues such as large instantaneous impact loads and unstable braking during translation. This technology ensures smooth, impact-free starts and stops, along with synchronized multi-drive acceleration and deceleration for stable crane operation. By overcoming the usual impact and vibration caused by step-type starts and stops, it prevents the crane from skewing during operation. Additionally, the smooth operation of the mechanism improves the stress condition of key components such as the reducer, brake, coupling, and motor, significantly extending their service life.

CATET’s double-beam bridge crane also features high-quality key components (reducer, brake, coupling, motor) and frequency conversion control technology, which ensures operational noise levels remain below 74dB. This not only improves the equipment's performance but also enhances the working environment and overall operator experience.





Item Specification Range Description
Lifting Capacity 1t – 100t (customizable) Determined by girder configuration and crane design
Structure Type Welded box structure / Plate structure High-strength welding structure, compact design
Driving Type Integrated motor with inverter (SEW/Nord/local) Integrated gearbox, motor, and brake
Wheel Diameter φ250 – φ500 mm Material: 42CrMo or ZG340-640
Wheel Base 1.5m – 4.5m (customizable) Designed according to span and working conditions
Traveling Speed 2 – 45 m/min (VFD adjustable) Smooth start and accurate positioning
Wheel Material 42CrMo alloy steel, heat-treated and surface hardened Wear-resistant, suitable for frequent operation
Installation Method Bolt connection / Dowel pin alignment / Rail alignment Precision-machined for easy girder mounting
Protection Level IP54 – IP65 (depending on configuration) Dust-proof and water-resistant for various environments
Working Temperature -20°C ~ +50°C Custom options available for extreme temperatures
Control Mode Pendant control / Wireless remote / Cabin control Flexible options to meet different site needs
Surface Treatment Sandblasting + Epoxy primer + Polyurethane topcoat Anti-corrosion for indoor and outdoor use
